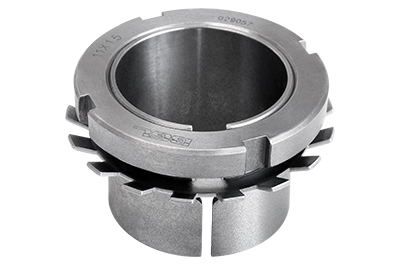

Used for fastening the bearing with tapered bore to a smooth shaft (maximum tolerance h10), backless. It is composed of 3 parts: sleeve, one nut and one lockwasher or locking device MS. They are always supplied with this complete set. Material: Nodular BGFN 01,02,03 (base GGG50), which is the option with the highest tensile strength. Optional in carbon steel.

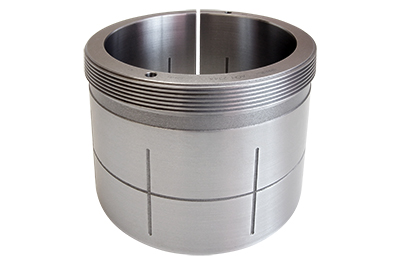

With the same dimensions of the standard sleeves, they are recommended for shafts or large assemblies, because they are provided with oil injection, facilitating the assembly and disassembly mainly. Material: Nodular BGFN 01,02,03 (base GGG50), which is the option with the highest tensile strength. And optional in carbon steel. Available for shafts from 140 mm.

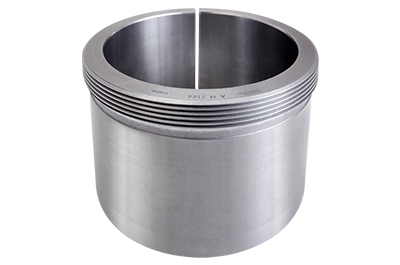

Applied for fastening the tapered bearing to the shafts with support (“backrest”), where here the shaft should be threaded so that the nuts can push the sleeve against the bearing. They are sold independently and accessories (nut and washer) must be ordered separately. Material: Nodular BGFN 01,02,03 (base GGG50), which is the option with the highest tensile strength. And optional in carbon steel.

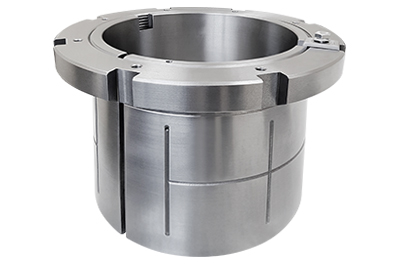

With the same dimensions of the standard sleeves, they are recommended for shafts or large assemblies, because channels of oil injection are provided, facilitating assembly and disassembly mainly. Material: Nodular BGFN 01,02,03 (base GGG50), which is the option with the highest tensile strength. And optional in carbon steel. Available for shafts from 150 mm.
